We are one of the market leaders in Power & Control Cables and
fastest growing Company in the Cable industry, offering the
widest range of cables and wires in the country. Coaxial Cables for Cable TV Network are manufactured
at an ultra modern plant. The stringent quality control measure coupled with Company’s R&D efforts ensure production of Coaxial Cables that are technologically superior and provide an ideal combination of electrical and physical properties. This makes the Coaxial Cables preferred choice for a variety of applications in CAT V network.

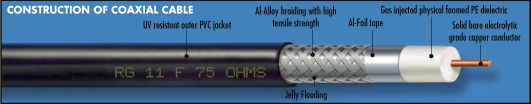

The center conductor is made of solid electrolytic grade 99.97pure copper to ensure better signal transmission. The conductor is insulated with foam dielectric made of polyethylene injected with nitrogen gas, which is superior and environment friendly as compared to chemical foam. The double screen of special composite type bonded aluminium foil and special grade aluminium alloy braiding of 60% coverage ensure low loss in signal quality, additional mechanical strength and resistance to oxide formation in tropical whether conditions.The specially in-house formulated PVC compound used in the jacketing is UV and abrasion resistant.
The Coaxial Cables are fully tested for all parametres by computerized analyzer. Coaxial cables with steel wire armouring can also be supplied for underground applications.
Features & Advantages
•
Minimun loss in signal quality : better reception
•
Higher band width : larger network expansion,100 plus channels
•
Low attenuation value : less electromagnetic interference
•
Minimum structural return loss
•
Moisture proof : Ideal for tropical conditions
Construction
Parameters
Cable Type
RG 11F
RG 6F
RG 59F
Center Conductor
Nom. Dia. (mm)
Solid bare copper
1.63
Solid bare copper
1.02
Solid bare copper
0.80
Dielectric
Nom. Dia. (mm)
Foam PE
7.11
Foam PE
4.57
Foam PE
3.55
Outer Conductor
1st Shield
2st Shield
Min. Coverage (%)
